I Research Interests



  • Next-Generation Memory Devices
    • 2T-0C devices based on oxide semiconductor channel materials


  • Cell Selector for 3D Emerging Memories
    • ALD OTS Materials Deposition and Characterization
    • Low-cost and high-speed OTS only memory (SOM) Applications


  • Development of SiC-based CMOS Process and Multi-Sensor SoC Platform

I Current Research Projects

  • Development of 4D Stackable 2T-0C DRAM device based on ultra thin channel FET (23.5~27.12, Korea Evaluation Institute of Industrial Technology, KEIT)

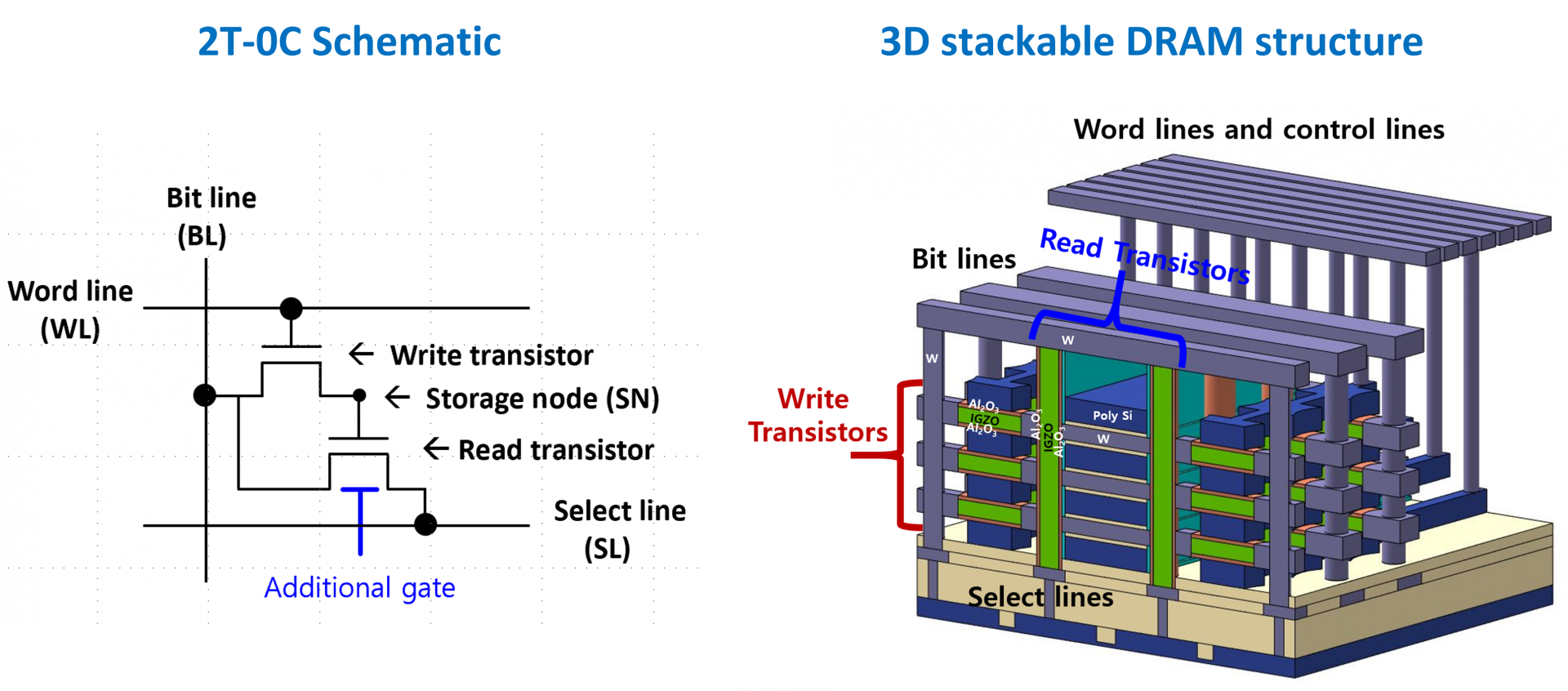

2T-0C DRAM device development (23.5~27.12)

2T-0C device fabrication and its characterization


  • Development of original technology for variable threshold high density memory and crossbar array (24.3~26.12, Minitry of science and ICT, MSIT)

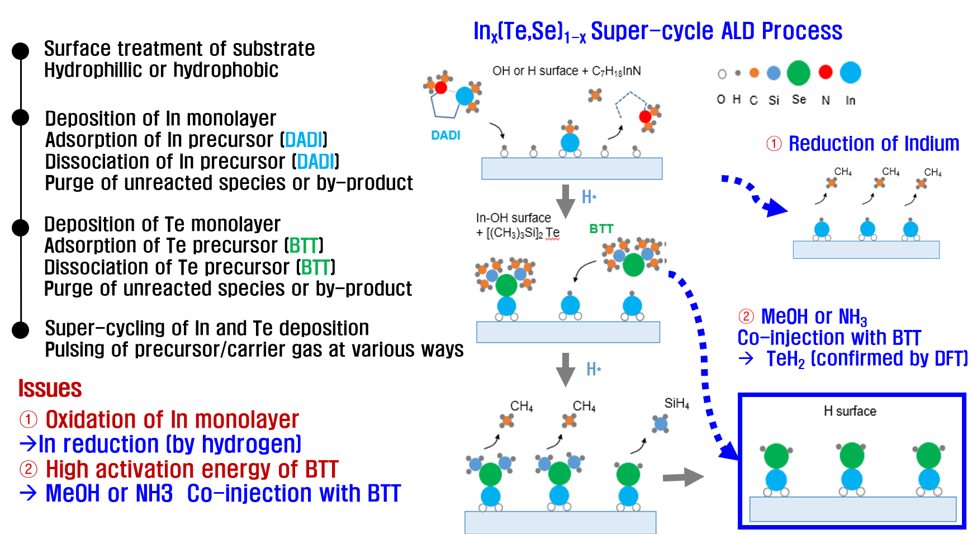

Metal chalcogenide ALD OTS for SOM (24.3~26.12)

Binary or Ternary metal chalcogenide ALD process


  • Development of 8-inch SiC Wafer-based Multi-Sensor SoC Platform (23.4~27.12, National Research Foundation of Korea, 한국연구재단)

Wide Bandgap Semiconductor Devices (23.4~27.12)

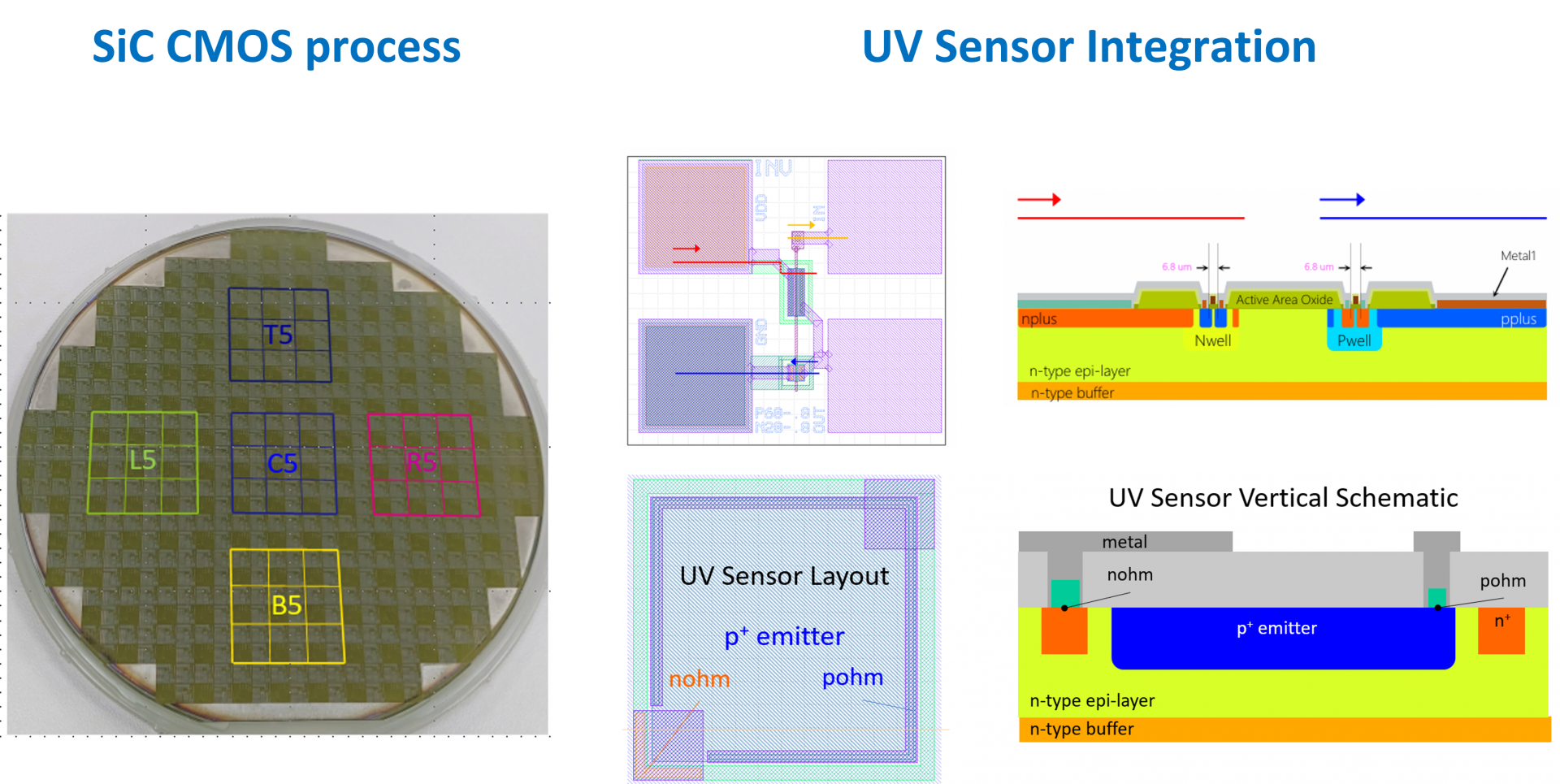

SiC CMOS Platform with co-integrated UV sensor
